Just Another Python Module

When OpenSees got off the ground, many finite element analysis software packages relied on fixed format input. So, it was important to integrate OpenSees with a fully functional scripting language to give users flexibility in creating applications without requiring users to write and compile C++ main() functions.

I don’t remember all the factors that went in to the selection of a scripting language for OpenSees. Tcl and MATLAB were the two main choices. MATLAB wasn’t chosen because it’s commercial software. Although Octave was available then, I suspect it wasn’t as mature as it is now, so it wasn’t seriously considered.

Python was also considered, but it was a relative newcomer at the time. Today, it seems pretty silly that Tcl was chosen over Python–hindsight is 20/20. However, I don’t consider the selection of Tcl a mistake. It was the most forward thinking option at the time. “Big data” was just over the horizon and “data science” was not yet a thing.

The main crux of Tcl is that every variable is a string. While this is good for navigating directory structures and concatenating file names like Germans make words, it’s not so good for mathematical operations. Tcl requires set c [expr $a*$b] where other languages accept c = a*b.

In addition, there are very few packages available for scientific computing and post-processing with Tcl. I’ve felt the pain of plotting OpenSees results on a Tk canvas using emu_graph, which is now defunct. I’ve also used the math::linearalgebra package, which makes its way through numerical linear algebra using Tcl lists in surprisingly fine fashion.

But I used those Tcl packages only when absolutely necessary. Normal levels of necessity, e.g., automating the generation of nice looking figures, bred innovation for those who wrote OpenSees post-processing middleware between Tcl and MATLAB.

So, with Python’s rise in popularity in the mid 2010s and the availability of numerous libraries, we decided to make OpenSeesPy. No more awkward middleware.

OpenSeesPy documentation and installation instructions can be found here. You’ll see that the commands follow the same style as the OpenSees Tcl commands. This should make your transition pretty smooth. Details of the software implementation are described in this paper in case you ever want to link OpenSees with other languages like R.

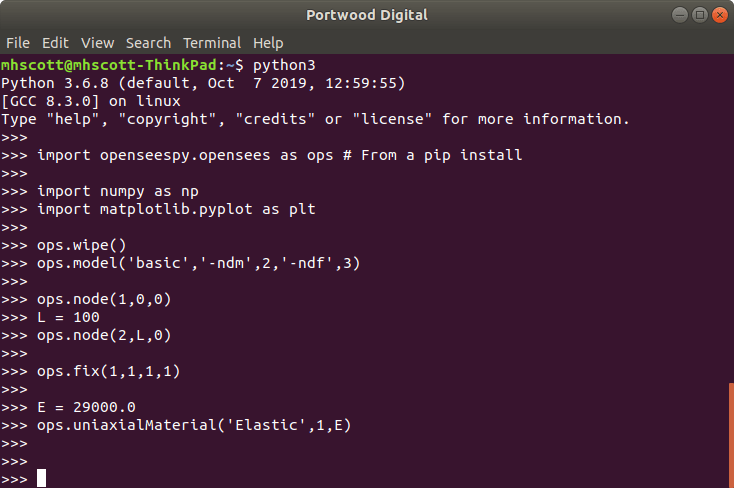

As a Python module, OpenSees becomes yet another species in the Python ecosystem. You start Python, then import opensees right alongside numpy and matplotlib, and other modules. This is a lot different from solipsistic OpenSees, the standalone executable built on top of Tcl.

One of the biggest advantages of using OpenSees with Python is you can embed your OpenSees analyses in Jupyter Notebooks, either locally or in the cloud. My colleague in Eastchester has made some good Python tutorial videos. Head over to her blog to check those out.

I could go on, but instead, here’s a webinar that shows the basics of using OpenSeesPy in a Jupyter Notebook. I hope it convinces you that switching to OpenSeesPy is a good idea.

5 thoughts on “Just Another Python Module

  1. This transition has been long overdue. I have really high hopes that now we can pre-process, analyze and post-process all in one place which potentially brings OpenSees to its (truly deserved) glory.

    Liked by 1 person
