I often mention the Concrete23 material model, but you won’t find it in the main OpenSees GitHub repository or in any of the repo’s public forks.
You won’t find Concrete23 because it doesn’t exist. Or maybe the model does exist but I keep it in a private fork of OpenSees. You’ll never know…
Let’s assume the latter is actually true and I have a private branch of the main OpenSees repository. How did I set that up?
Like any rational person, I first Googled how to maintain a private fork of a public repo. There were a few reasonable results and these instructions by Harry Roberts appeared to be the most reasonable and easy to follow. I then confirmed with Minjie that this is how to do it.
Here are the instructions adapted to OpenSees.
Create a Private Repo
Login to your GitHub account then go to
github.com/new and create a private repository.
You do not need to initialize this repository–leave it empty.
Set a Private Remote
A remote repository is the endpoint on
github.com where you will push your code. You can see the remotes on your local machine by using the
git remote -v command. If you followed the instructions in this post, you should have
upstream as remotes for
The addresses show that
origin points to your public fork of OpenSees,
upstream points to the main OpenSees repo,
Next, set a remote that points to the private repository. You can call the remote whatever you want–this example uses
git remote add private ssh://firstname.lastname@example.org:username/PrivateRepo.git
The remote address syntax may be slightly different on your machine, e.g.,
email@example.com:username/OpenSees.git. Mimic whatever syntax is shown by
git remote -v when adding your private remote.

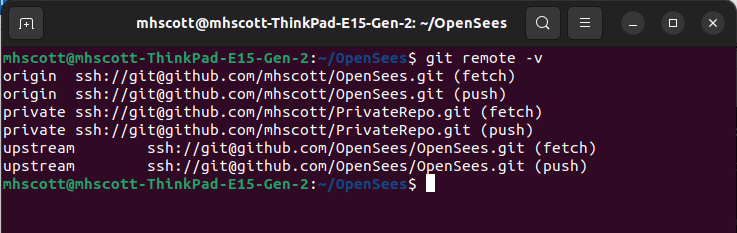

git remote -v again and you will see the new
private remote is available for
Create a Private Development Branch
On your local machine, checkout a new branch on which you will develop Concrete23.
git checkout -b concrete23
Finally, tell your new branch to push to the private remote.
git push -u private concrete23
All pushes from the
concrete23 branch will go to the private repository to which
The first time you
push will take a while as you’re pushing the entire OpenSees repo up to your private repo.
Push Code to Your Private Repo
As you hit important milestones in developing Concrete23 on the
concrete23 branch, you’ll want to push changes up to the private repo. This is business as usual.
git add Concrete23.cpp git commit -m "Updating smeared crack calculation" git push
Having already set the upstream tracking of
concrete23 with the
-u option, the commits will go to only the private repo.
Go to your private repo at
github.com/username/PrivateRepo and verify the updates are there. Then go to your public OpenSees fork,
github.com/username/OpenSees, and verify the updates are not there.
Merge Public OpenSees into Your Private Branch
Let’s say some new updates have been merged into the public OpenSees and you want to bring those updates into your private branch. I assume you bring upstream OpenSees changes into your
master branch then merge those changes into multiple branches, one of which is the
concrete23 branch dedicated to the private repo.
First, pull from upstream into your master branch (see these instructions).
git checkout master git pull upstream master
After resolving any conflicts or other issues, checkout your
concrete23 branch and merge.
git checkout concrete23 git merge master
Resolve any additional conflicts that arise. Now you can push the updates to the private repo.
The upstream tracking of the
concrete23 branch to the private repo was already established with the
Note that you have to perform this pull, merge, push process every time you want to merge public OpenSees into your private branch.
Merge Your Private Branch into Public OpenSees
Your journal article on the wonders of Concrete23 has been published and you are ready to share the model for the greater good of the OpenSees community.
Because you cannot push directly to the
master branch of OpenSees, you will have to make a pull request.
First, change the upstream remote for your
concrete23 branch to the upstream OpenSees remote (use
git remote -v to verify the
git push -u upstream concrete23
Then go to
github.com and open a pull request.
Finally, wait for Frank to merge your pull request.
Remember, if you never merge your private branch into public OpenSees, then it’s like the code never existed–make a pull request.
To push to a private repo from multiple machines linked to your GitHub account, you will have to set the private remote on each machine. No big deal.
You can have more than one branch on your local machine point to the private repo. Just be sure to set the upstream tracking with the
-u option of
git push, e.g., when you’re ready to tackle Steel08.
git checkout -b steel08 git push -u private steel08
You can create other branches to point to other private repos.
To collaborate with others on a private repo, give your collaborators access to the private repo. Your collaborators will have to set the private remote on their machines, but then it’s pretty much business as usual.
